Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing Epoxy Resin,1000 - 2500mPa.s Viscosity Casting Epoxy Resin,1.16 - 1.20g/cm3 Density APG Epoxy Resin

1000 - 2500mPa.s Viscosity Casting Epoxy Resin

1.16 - 1.20g/cm3 Density APG Epoxy Resin

مكان المنشأ:

الصين

اسم العلامة التجارية:

wenyou

إصدار الشهادات:

ISO9001, ISO14001, SGS, and UL

رقم الموديل:

8517

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
تصنيف:
مواد لاصقة مزدوجة المكونات
الاستخدام:
العوازل والمحولات ومنتجات العزل الأخرى
طلب:
العوازل الكهربائية الخارجية لتطبيقات الجهد المتوسط ​​والعالي
ظهور راتنجات الايبوكسي:
سائل لزج شفاف أصفر فاتح
اللزوجة عند 25 درجة مئوية:
1000 - 2500MPA.S
الكثافة عند 25 درجة مئوية:
1.16 - 1.20 جم/سم3
ضغط البخار عند 25 درجة مئوية:
< 0.01Pa
نقطة الوميض:
حوالي 135 درجة مئوية
وصف:
راتنج الايبوكسي الصب المرن لتغليف لفائف المحولات - قابلة للتكيف مع ظروف مختلفة
قيمة الايبوكسي:
4.5 - 5.0Eq/kg
شروط الدفع والشحن
الحد الأدنى لكمية
20 كجم/سطل كعينة
الأسعار
قابل للتفاوض
تفاصيل التغليف
20 كجم/سطل، 220 كجم/برميل، 1200 كجم/خزان
وقت التسليم
7-10 أيام عمل
شروط الدفع
عادة t/t ، l/c
القدرة على العرض
الكثير من المواد الخام في المخزون
وصف المنتج
Fast-Curing APG Epoxy Resin | Flame Retardant for Electrical Parts
Flexible Casting Epoxy Resin for Transformer Coil Encapsulation
Our flexible casting epoxy resin is specifically engineered for transformer coil encapsulation, designed to withstand various mechanical and thermal stresses during operation while maintaining excellent electrical insulation properties.
Key Benefits
  • Adapts to thermal expansion and contraction without cracking or delamination
  • Absorbs mechanical vibrations to protect transformer coils
  • Maintains excellent electrical insulation properties
  • Provides optimal balance between flexibility and structural strength
  • Ensures long-term integrity of transformer encapsulation
Product Introduction
LE-8517 is a modified saturated cyclic aliphatic epoxy resin system, combined with LH-8517, a modified weather-resistant anhydride hardener. This fast-curing epoxy is ideal for electronic insulators and suitable for vacuum casting.
Applications
Designed for outdoor use in medium and high voltage electrical components including:
  • Electrical insulators
  • Transformers
  • Various insulation components
Processing Methods
Available processing options include:
  • Conventional gravity casting method under vacuum
  • Automatic Pressure Gelation (APG) process
Production methods can be customized to accommodate existing manufacturing techniques.
Material Properties
This two-component system features:
  • Saturated cyclic epoxy resin without pre-mixed fillers
  • Remains liquid at room temperature
  • Excellent UV resistance
  • Outstanding thermal shock resistance
  • Superior environmental stability
  • Exceptional mechanical and dielectric properties
Formulation
Component Material Quantity
Epoxy resin LE-8517 100 pbw
Hardener LH-8517 100 pbw
Filler Silica powder 300-360 pbw
Color paste LC series 3 pbw
Product Images

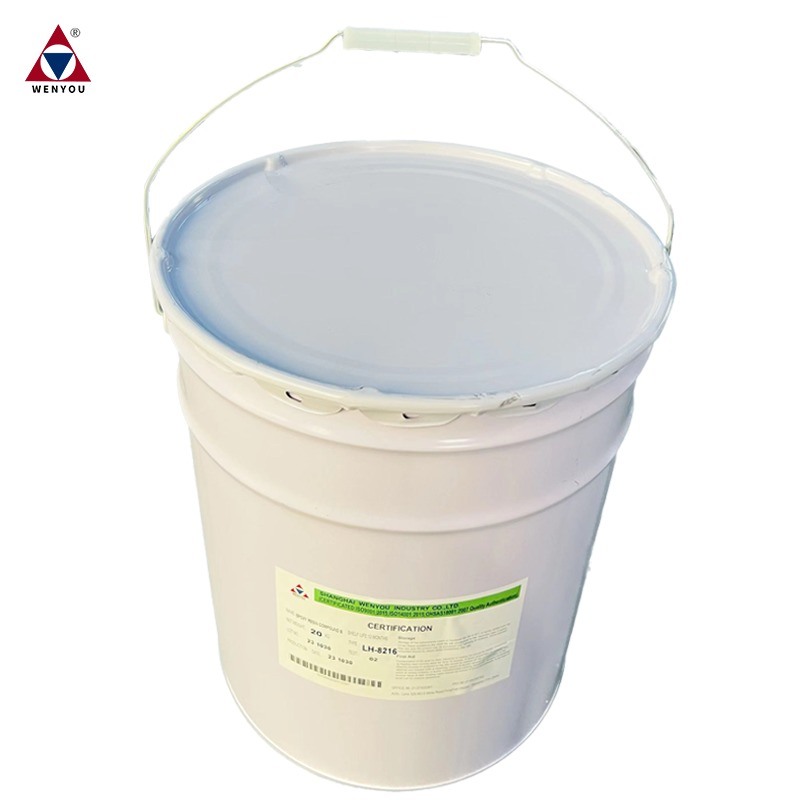

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 0

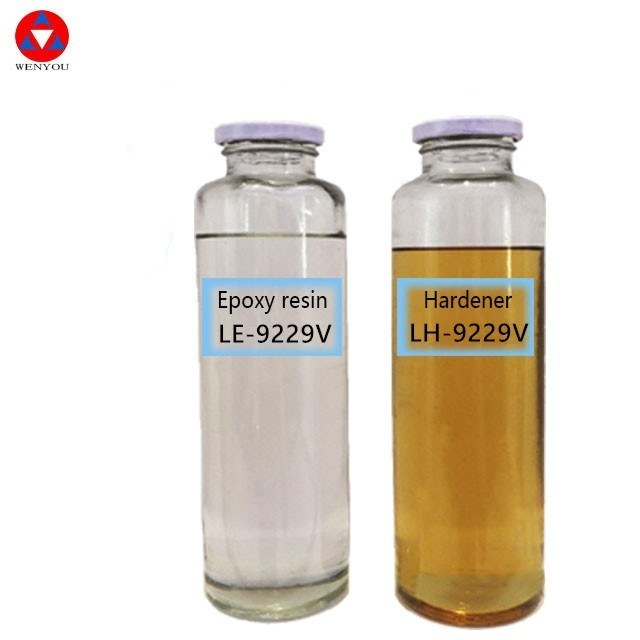

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 1

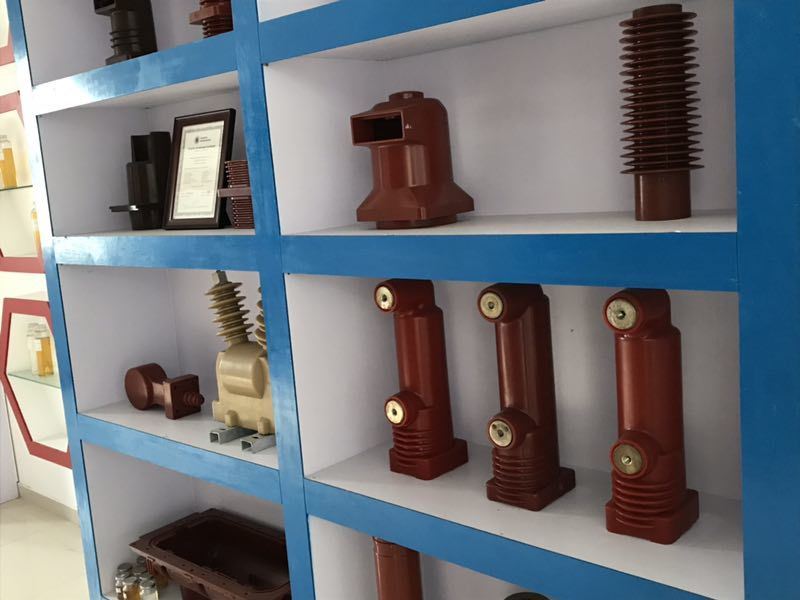

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 2
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 3
